Fwd: [En-Nut-Discussion] uart configuration

[Harald Kipp]

The picture is at
http://www.ethernut.de/img/dsubandjumpers.png

Arnfinn Aas Eielsen wrote:

Hi

You need to make sure the jumpers are connecting the right wires
together, or else the signals will not be on the right connectors
according to the RS-232 standard.

Look at page 16 here:
http://www.ethernut.de/pdf/ethwm21e-1.pdf

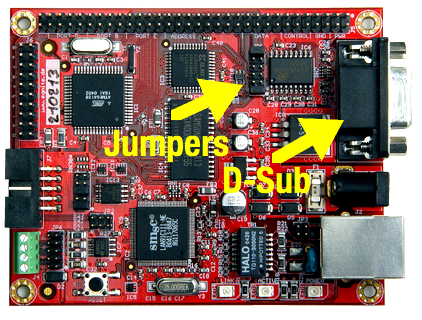

And I have also included a picture I found on the Ethernut site with
the stuff marked as clearly as I could. On the picture it looks like
the jumpers are configured for UART0 to be routed as RS-232 to the
D-Sub connector, like you want.

A.
