> for a project I need to use at least 14 I/O pins of the expansion port
> as inputs to connect some buttons. I'd like to use a pulldown resistor
> to GND and connect the button to VCC.
>
> So far everything is ok, but I'm sonewhat confused about the internal
> usage of the I/O pins. Reading
> http://www.ethernut.de/en/hardware/enut3/ports.html
>
> I think I could use
>
>
> P0, P1, P2, P3, P4, P5, P6, P7

Definitely. They are intentionally left unused to provide an 8-bit port.

> P8, P11, P12, P18 abd P19

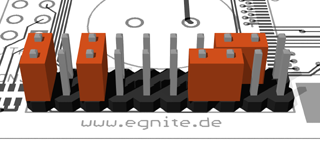

Using P18 and P19 requires to set the JTAG jumper for AT91 JTAG only:
http://www.ethernut.de/img/s-jtag-at91.png
as you already mentioned below.


> for this purpose.
>
> Now I'm a little confused about the internal connection of these pins on
> the Ethernut3 board.
>
> P3-P7, P8, P12 and P18 / P19 are connected to the cpld.

P3-P7,P8 may serve as timer I/O for specific functions implemented in
the CPLD. P12 may be used to generate FIQs via the CPLD. They are all
unused in the standard configuration (unused CPLD inputs).


> P18 and P19 should be possible to use when setting the jumpers the
> correct way.

Yes.


> It seems that the inputs are influenced by the cpld in some way. If I
> use pulldown resistors > 20k-50k the pins are stuck at high after
> pushing the connected button once. With lower resistors (10k) it seems
> to work for this purpose, my oscilloscope still shows some influence by
> the cpld. Are'nt thos connected but internaly unused cpld pins
> configured as tri-state?
>
> Only the pins P0, P1, P2 and P11 work as expected.

Yes, I'd expect that the CPLD pins are tri-stated. However, in general
it is more common (and fail safe) to use pull-ups and let the buttons
pull to ground. That may be a reason why this problem hadn't been
discovered so far. Would your application allow this change?

Alternatively you may try to decrease the pull-down value.

Btw. are you aware, that the AT91 CPU on Ethernut 3 is _not_ 5V tolerant?

If you want to try modifying the CPLD yourself, do not miss
enut30npl-20071207.zip
available at
http://www.ethernut.de/en/hardware/enut3/nplupgrd.html

Please keep us informed about any success or failure,

Harald
